AWAKEN, AROMATHERAPY SPA

Awaken is a aromatherapy spa located in the Lower East Side of Manhattan, where the essential oils not only play a role in the spa treatments, but also show in the architecture and design throughout the entire building.

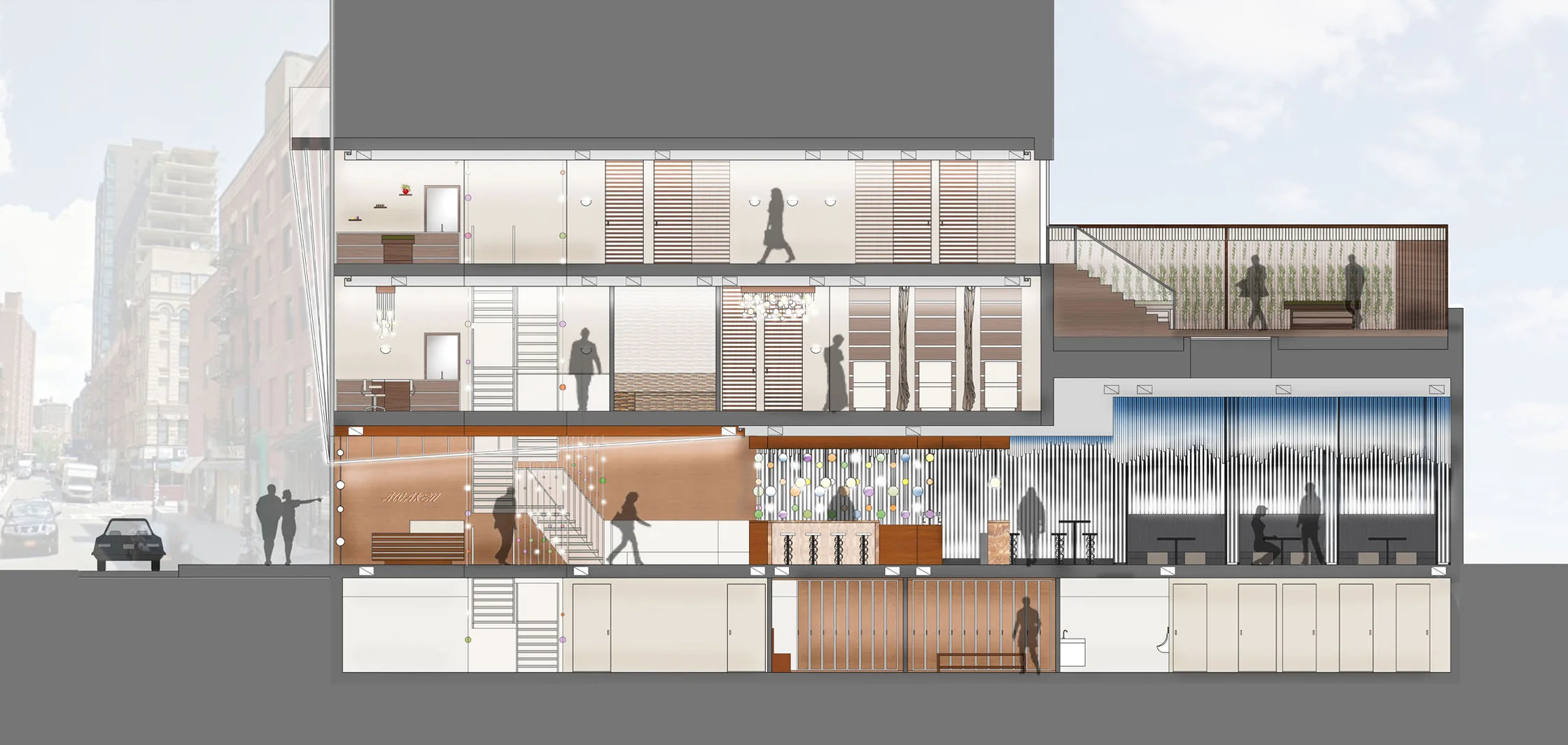

Section of Building   Scale 1/4" = 1'0"   (click to enlarge)

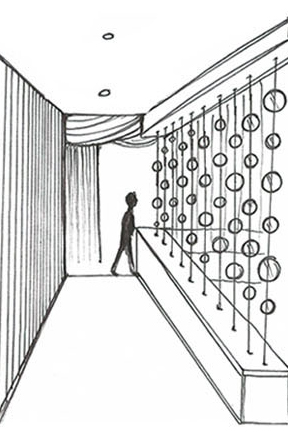

Spa Entry (click to enlarge)

(click to enlarge)

CELLAR

  • 1.  Storage / Mech. Room
  • 2. Pump Room
  • 3. Laundry Room
  • 4. Elevator Pump Room
  • 5. Cellar Vestibule
  • 6. Masseuse Lounge
  • 7. Men's Locker Room
  • 8. Women's Locker Room

1ST FLOOR

  •  9. Reception
  • 10. Aromatherapy Shop
  •  11. Essential Oil Consultation bar
  • 12. Apothecary Bar
  • 13. Hookah Lounge
  • 14. Warming Kitchen
  • 15. Bathroom
  • 16. Bathroom

2ND FLOOR

  •  17. Manicure / Pedicure Area
  •  18. Small Office
  •  19. Aroma Steam Room
  • 20. Aroma Shower
  • 21. Bathroom
  • 22. Tranquility Room

3RD FLOOR

  • 23. Dry Treatment Room 1
  • 24. Dry Treatment Room 2
  • 25. Double Dry Treatment Room
  • 26. Bathroom
  • 27. Aroma Shower Treatment Room
  • 28. Wet Treatment Room 1
  • 29. Wet Treatment Room 2

OUTDOOR PATIO

  • 30. Outdoor Treatment Room 1
  • 31.  Outdoor Treatment Room 2
  • 32. Outdoor Treatment Room 3
  • 33. Outdoor Treatment Room 4
  • 34. Outdoor Lounge Area
  • 35. Floating Aroma Pool

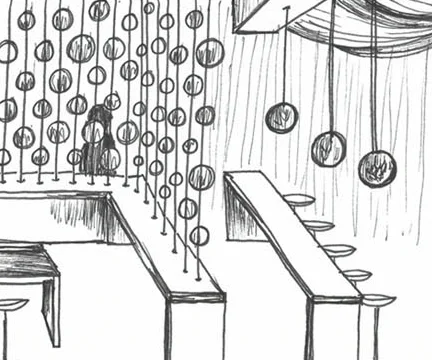

Aromatherapy Shop (click to enlarge)

(click to enlarge)

(click to enlarge)

(click to enlarge)

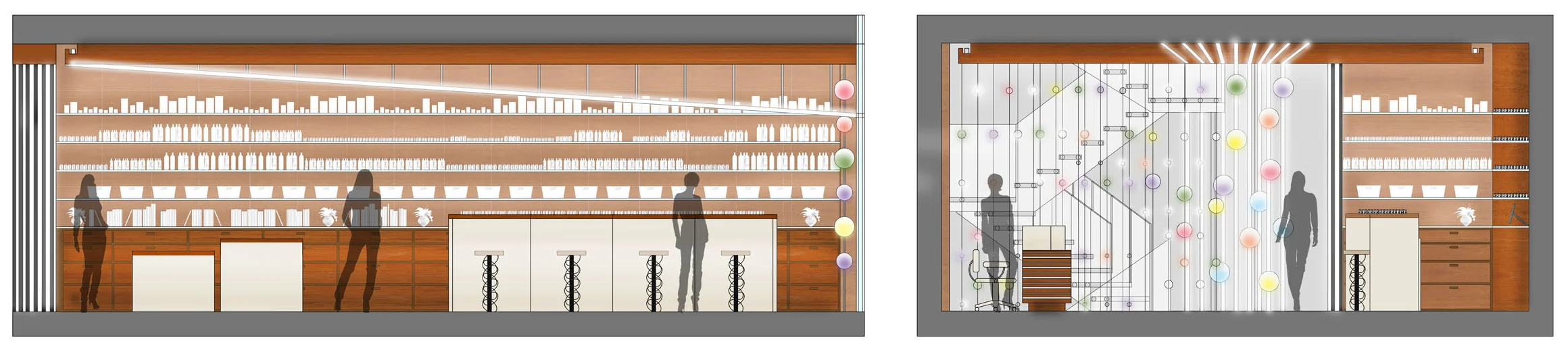

Aromatherapy Shop Elevations   Scale 1/4"= 1'0"   (click to enlarge)

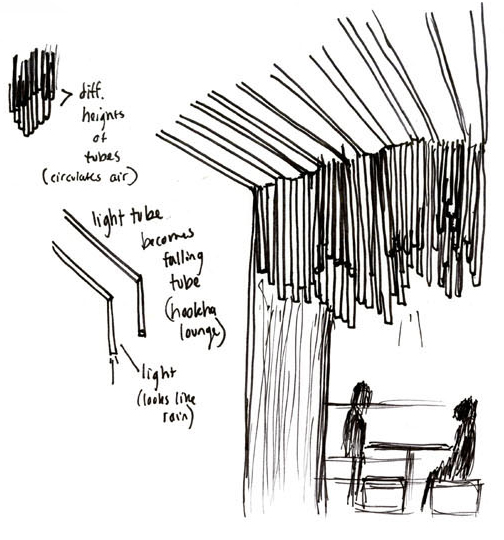

Hookah Lounge (click to enlarge)

Outdoor Patio (click to enlarge)
